MEGA reserves the right to make changes in model, technical specifications, color, equipment & accessories without prior notice.

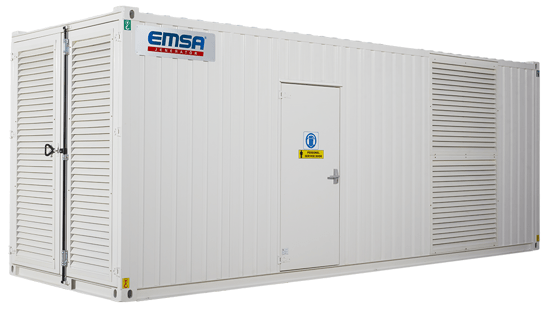

MG-BDS-1650
MG-BDS-1650
BAUDOUIN Series Diesel Generator Sets
BAUDOUIN Series Diesel Generator Sets
Stand by
kVA
1650
kW
1320
PRIME
kVA
1500
kW
1200
BAUDOUIN
STAMFORD
Smart 500 mk
Water Cooled
50 hz
3 phase
Easy maintenance
Modular type sound-proof canopy
Diesel
Remote control system
Warning system for decreasing fuel
Engine Specifications
- BAUDOUIN series heavy duty diesel engine
- 4 Cycle, Water Cooling system, TURBOCHARGED - AFTERCOOLER Induction
- PDF_BLOK4_ENGINE_SPECIFICATIONS_GOVERNOR_ECU governor system
- 12/24 volt self-starter and charger alternator
- Changeable air, fuel and oil filter
- Flexible fuel pipe
- Oil discharge valve and extention pipe
- Industrial type silencer, exhaust spiral or compensator
- Maintenance free battery
- Engine block water heater (in automatic models)
- Diesel gen-set maintenance and operating instructions and electrical circuit diagram
Model
12M33G1650/5
Power
Stand by kW
1450
Prime kW
1350
Speed (rpm)
1500
Cycle
4
Displacement (lt)
39,2
Number of cylinders
12 V
Bore & Stroke
150 x 185
Compression ratio
15 : 1
Governor type
PDF_BLOK4_ENGINE_SPECIFICATIONS_GOVERNOR_ECU
Induction
TURBOCHARGED - AFTERCOOLER
Combustion System
Direct
Cooling system
Water
Fuel consumption (lt/h)
100%
324
75%
234,2
50%
156,1
Total lubrication system capacity (lt)
160
Total coolant capacity (lt)
303
Alternator Specifications
- Brushless, single bearing, flexible disc 4 poles alternator for harmonic failure
- H type isolation class
- IP 21-23 protection class
- Self exciter
- Electronic automatic voltage regulator
- Stator 2/3 step for harmonic failure
- The alternator windings are protected by insulating varnish against oil and acid
Brand
STAMFORD
Model
PI734C
Frequency (hz)
50
Power (KVA)
1660
Design
4 pole, brushless
Connection type
Star
Voltage (V)
400
phase
3
A.V.R.
MX341
Voltage regulation (+/-)
± 1%
Insulation system
Class H
Protection
IP23
Rated power factor
0,8
Weight (kg)
3020
Canopy
- Modular type sound-proof canopy
- Canopy installation executed with screw and nut, without welding process
- Epoxy and polyester powder painted canopy
- Weatherproof canopy rating is IP 23
- Canopy designed for easy maintenance
- Lockable doors on both sides of canopy
- Emergency stop button
- Transparent panel inspection window
- Insulation details: Non-flammeable acoustic foam
- Nano tech cleaning system
Dimensions
(W x L x H) mm
(W x L x H) mm
2400x5450x3319 *
Weight (Kg)
11759
Fuel tank capacity (lt)
2275
Dimensions
(W x L x H) mm
(W x L x H) mm
2400x4810x2640
Weight (Kg)
9779
Fuel tank capacity (lt)
2275
Silencer options
- Standard industrial type
- Critical type
- Hospital type
Canopy options
Gen-Set safety protection & alarms
- High water temperature
- Low oil pressure
- High & low engine speed
- Low radiator water level
- Over current load
- High & low genset voltage
- Start/stop failure
Optional Equipments
- Charge ammeter
- Moulded case circuit braker (in automatic models)
- Hospital/Critical type silencer
- Modular type sound-proof canopy
- Mobile - trailer
- Synchronization control panel for 2-16 gensets
- 3 pole/4 pole automatic transfer panel (A.T.S.)
- Fuel and oil heater
- Alternator heater
- Automatic fuel filling system
- Fuel-water seperator filter
- PMG warning system
